Toray TM820V 400 RO Membrane Elements

Description

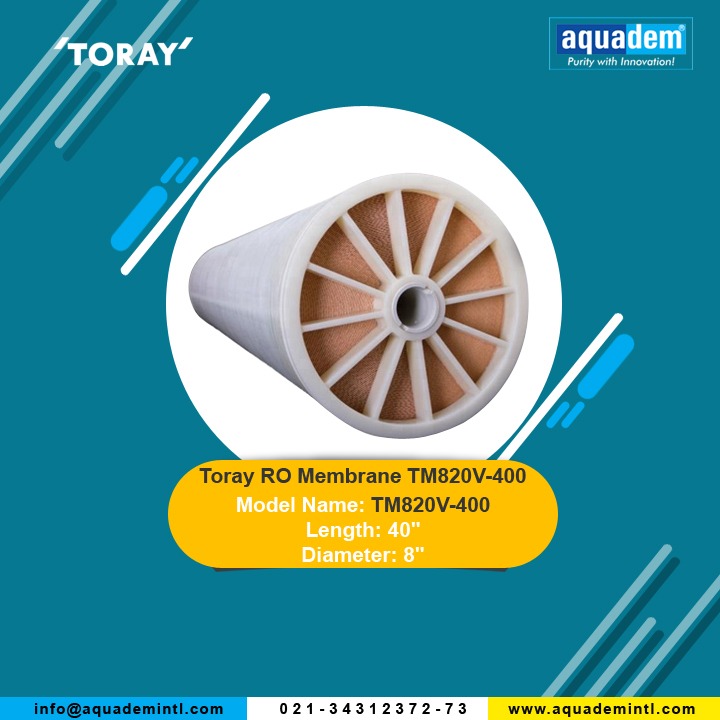

Toray RO Membrane TM820V-400

Toray TM820V-400 elements are fiberglass wrapped membranes for use in industrial high TDS brackish water applications or sea water treatment systems. Toray reverse osmosis elements are functional membrane elements with excellent quality and high performance developed with the polymer engineering expertise Toray has gained over the years. Toray Reverse Osmosis Membrane Elements are high rejection and high flux RO elements.

SPECIFICATIONS:

• Model Name: TM820V-400
• Length: 40″
• Diameter: 8″
• 34 mil feed spacer
• Active Membrane: 400 ft²
• Membrane Type: Composite Polyamide
• Operating Pressure: 800 PSI
• Maximum Pressure: 1200 PSI
• Permeate Flow Rate: 9000 GPD
• Nominal Salt Rejection: 99.8%

APPLICATION DATA:

• Maximum Operating Temperature: 113°F (45°C)
• Chlorine Tolerance: Not detectable
• pH Range, Continuous Operation: 2-11
• pH Range, Short Term Cleaning (30min): 1-12
• Maximum Feed Water Silt Density Index (SDI): 5
• Maximum Pressure Drop for Each Element: 15 psi

TEST CONDITIONS:

• 32,000 mg/l NaCl solution
• 77°F (25°C) Operating Temperature
• 8% Permeate Recovery
• 7.0 pH Range

FEATURES:

• For use in seawater treatment
• Remove up to 99% of total dissolved solids
• Remove dissolved impurities such as chloride, lead, chromate, fluoride, bacteria, and others
• Includes one interconnector and brine seal
