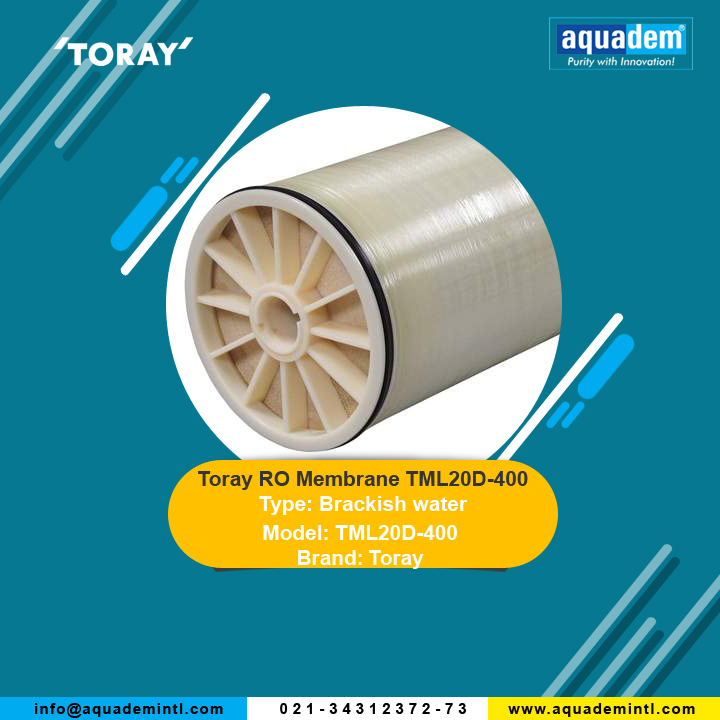

Toray RO Membrane TML20D-400 Elements

Description

Toray RO Membrane Elements TML20D-400

Descrition:

Toray TML20D-400 elements are fiberglass-wrapped, high rejection membranes for use in brackish waters with high fouling potential. Toray reverse osmosis elements are functional membrane elements with excellent quality and high performance developed with the polymer engineering expertise Toray has gained over the years. Toray Reverse Osmosis Membrane Elements are high rejection and high flux Reverse Osmosis  elements.

SPECIFICATIONS:

• Model Name: TML20D-400
• Length: 40″
• Diameter: 8″
• 34 mil feed spacer
• Active Membrane: 400 ft²
• Membrane Type: Composite Polyamide
• Operating Pressure: 225 PSI
• Maximum Pressure: 600 PSI
• Permeate Flow Rate: 10,500 GPD
• Nominal Salt Rejection: 99.8%

APPLICATION DATA:

• Maximum Operating Temperature: 113°F (45°C)
• Chlorine Tolerance: < 0.1 PPM
• pH Range, Continuous Operation: 2-11
• pH Range, Short Term Cleaning (30 min): 1-13
• Maximum Feed Water Silt Density Index (SDI): 5
• Maximum Pressure Drop for Each Element: 15 psi

TEST CONDITIONS:

• 2000 mg/l Na Cl solution
• 77°F (25°C) Operating Temperature
• 15% Permeate Recovery
• 7.0 pH Range

FEATURES:

• For use in ultra pure water production for semiconductor and other industries, wastewater treatment, and many other applications
• Remove up to 99% of total dissolved solids
• Remove dissolved impurities such as chloride, lead, chromate, fluoride, bacteria, and others
• High rejection
• Includes one inter connector and brine seal
