Description

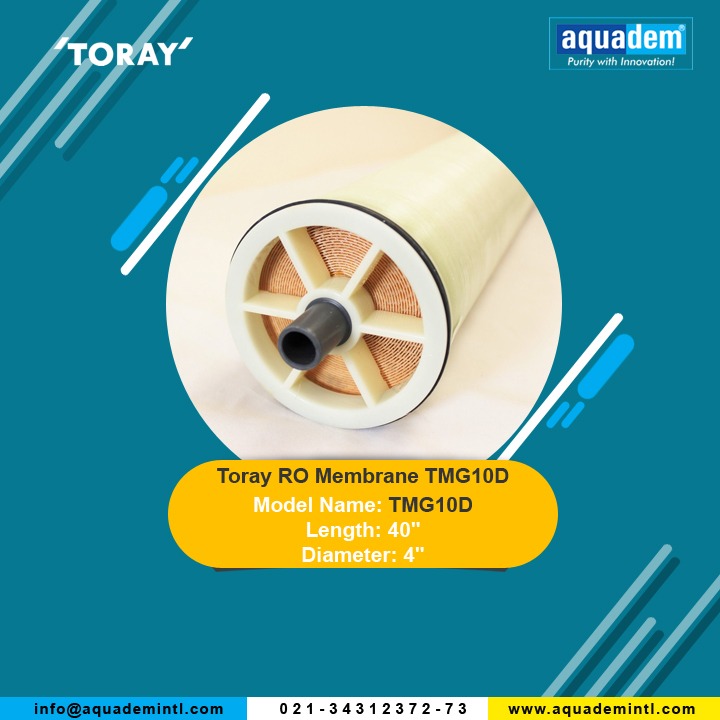

TORAY TMG10D RO Membrane

Toray TMG10D membranes are fiberglass-wrapped for use in brackish water treatment systems. TMG series elements are high rejection, for high salinity brackish water applications. Toray reverse osmosis elements are functional membrane elements with excellent quality and high performance developed with the polymer engineering expertise Toray has gained over the years. Toray Reverse Osmosis Membrane Elements are high rejection and high flux RO elements.

SPECIFICATIONS:

• Model Name: TMG10D
• Length: 40″
• Diameter: 4″
• 34 mil feed spacer
• Active Membrane: 87 ft²
• Membrane Type: Composite Polyamide
• Operating Pressure: 150 PSI
• Maximum Pressure: 365 PSI
• Permeate Flow Rate: 2850 GPD
• Nominal Salt Rejection: 99.7%

APPLICATION DATA:

• Maximum Operating Temperature: 113°F (45°C)
• Chlorine Tolerance: < 0.1 PPM
• pH Range, Continuous Operation: 2-11
• pH Range, Short Term Cleaning (30min): 1-12
• Maximum Feed Water Silt Density Index (SDI): 5
• Maximum Pressure Drop for Each Element: 15 psi

TEST CONDITIONS:

• 2000 mg/l NaCl solution
• 77°F (25°C) Operating Temperature
• 15% Permeate Recovery
• 7.0 pH Range

FEATURES:

• For use in ultrapure water production for semiconductor and other industries, wastewater treatment, and many other applications
• Remove up to 99% of total dissolved solids
• Remove dissolved impurities such as chloride, lead, chromate, fluoride, bacteria, and others
• High rejection
• Includes one interconnector and brine seal
